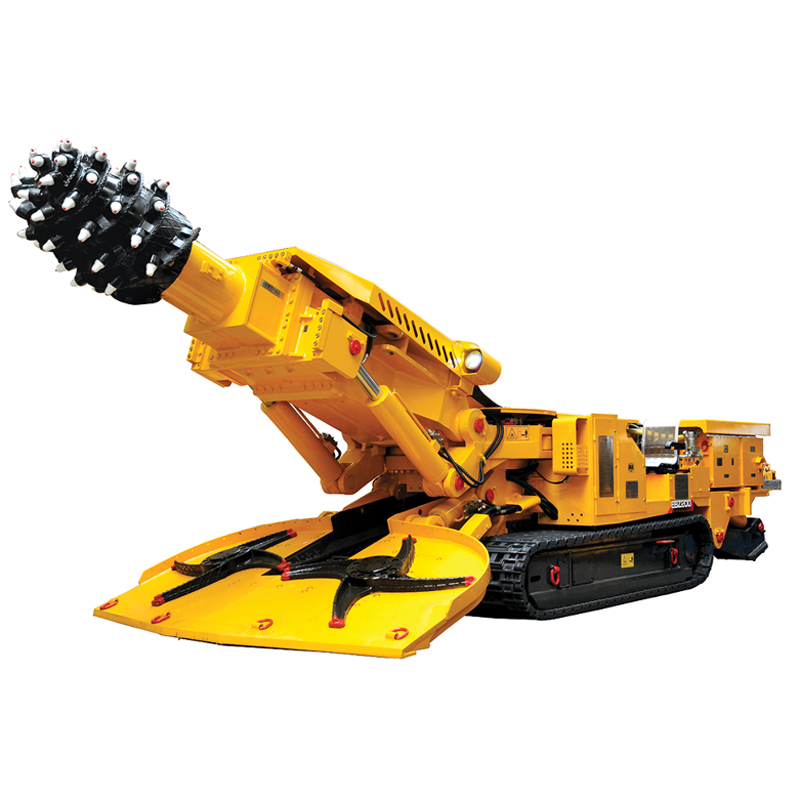

HCR280 Roadheader
The product boasts high operational efficiency, adaptability to operating conditions, operational reliability, and ease of transportation and maintenance. It ensures stable and efficient operation in challenging conditions, providing users with a reliable experience and enhancing operational efficiency and quality.
Product Introduction
1. High work efficiency:With a total power of 472 kW, a cutting motor of 280/200 kW, and a cutting head speed of 56/27 rpm, it ensures fast and efficient cutting. A lifting capacity of up to 5 m³/min ensures highly efficient material loading and transport.
2. High adaptability:The slope climbing ability reaches ±18°, allowing it to cope with inclined working scenarios; the overall dimensions are adaptable to various working spaces, and the cutting positioning range can meet a variety of cutting requirements. The ground pressure is only 0.16 MPa, resulting in low surface impact, suitable for working on various types of longwall.
3. Guarantee of work performance:The parameters related to water supply (water pressure, water quality, water supply volume, etc.) have clear and tailored requirements, meeting the water requirements during work and contributing to work guarantees such as dust reduction; the conveyor system uses a double-sided scraper design with a chain speed of 31 meters per minute (motor driven), which ensures highly efficient and stable operation.
4. Good transportability, maintenance and adaptability to operation:the dimensions and weight of the largest components are optimized, which simplifies the requirements for transport and conditions at the site;capable of economically cutting rock with a uniaxial compressive strength of ≤60/70 MPa, suitable for use, including when working in mountain conditions.

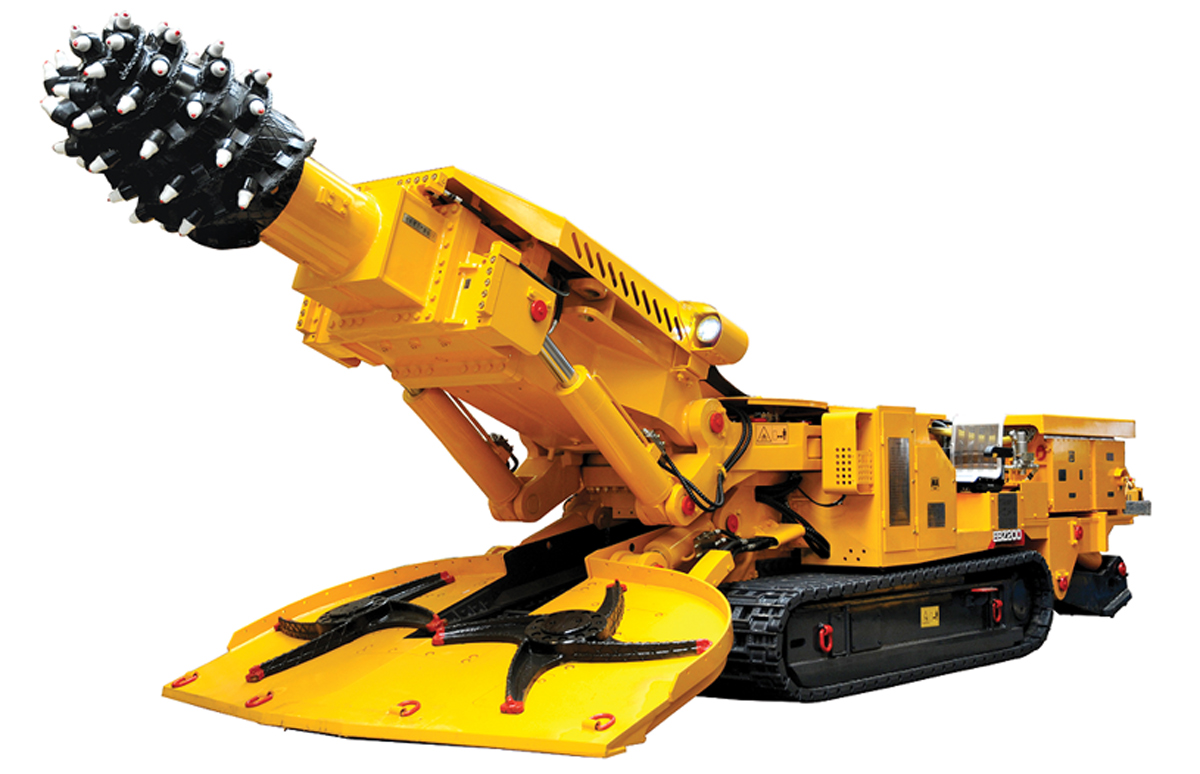

Roadheader HCR280
Specifications |
|||||
Position |
Parameter |
||||
Total weight |
91t. |
||||
Dimensions |
Length |
11900 mm |
|||
Width |
Feeder |
3600 mm |
|||
Housings |
2030 mm |
||||
Height |
Maximum height with horizontal cutting head |
2550mm |
|||
Undercut depth |
250mm |
||||
Ground clearance |
248mm |
||||
Fixed cutting size |
height |
3300-5500mm |
|||
width |
3800-6500mm |
||||
Climbing ability |
± 18° |
||||
Rate of penetration |
0-6.5 m/min |
||||
Ground pressure |
0.16MPa |
||||
Total power |
472kW |
||||
Power of the cutting element electric motor |
280/200kW |
||||
Power of the electric motor of the pumping station |
160kW |
||||
Power supply voltage |
AC1140V |
||||
Cutting head rotation speed |
55/27 rpm |
||||
Load capacity |
Star type, 5m3/min, 33rpm |
||||
Track width |
720mm |
||||
Size of the largest non-removable part |
Housing frame |
3.8x1.4x1.5m |
|||
Front channel of the 1st conveyor |
3.77x0.78x0.52m |
||||
Rear support |
1.65x2.56x1.34м |
||||
Mass of the largest non-removable part |
9000 kg. |
||||
Resistance to one-sided rock pressure in permissible/economical cutting |
≤60/70 MPa |
||||
Type of output |
Rock roadway |
||||
PH value of the supplied water |
PH 6-8, Chloridion ≤ 200mg/l, sulphane ≤ 400mg/l |
||||
The required pressure of the supplied water in the workings |
3-8 MPa |
||||
Volume of water supplied |
≥120/30L/min |
||||
Conveyor type |
Double-sided chain scraper 22x86-C |
||||
Conveyor chain speed |
31 m/min (Motor drive) |
||||
Twin hydraulic pump |
260+260ml/r |
||||

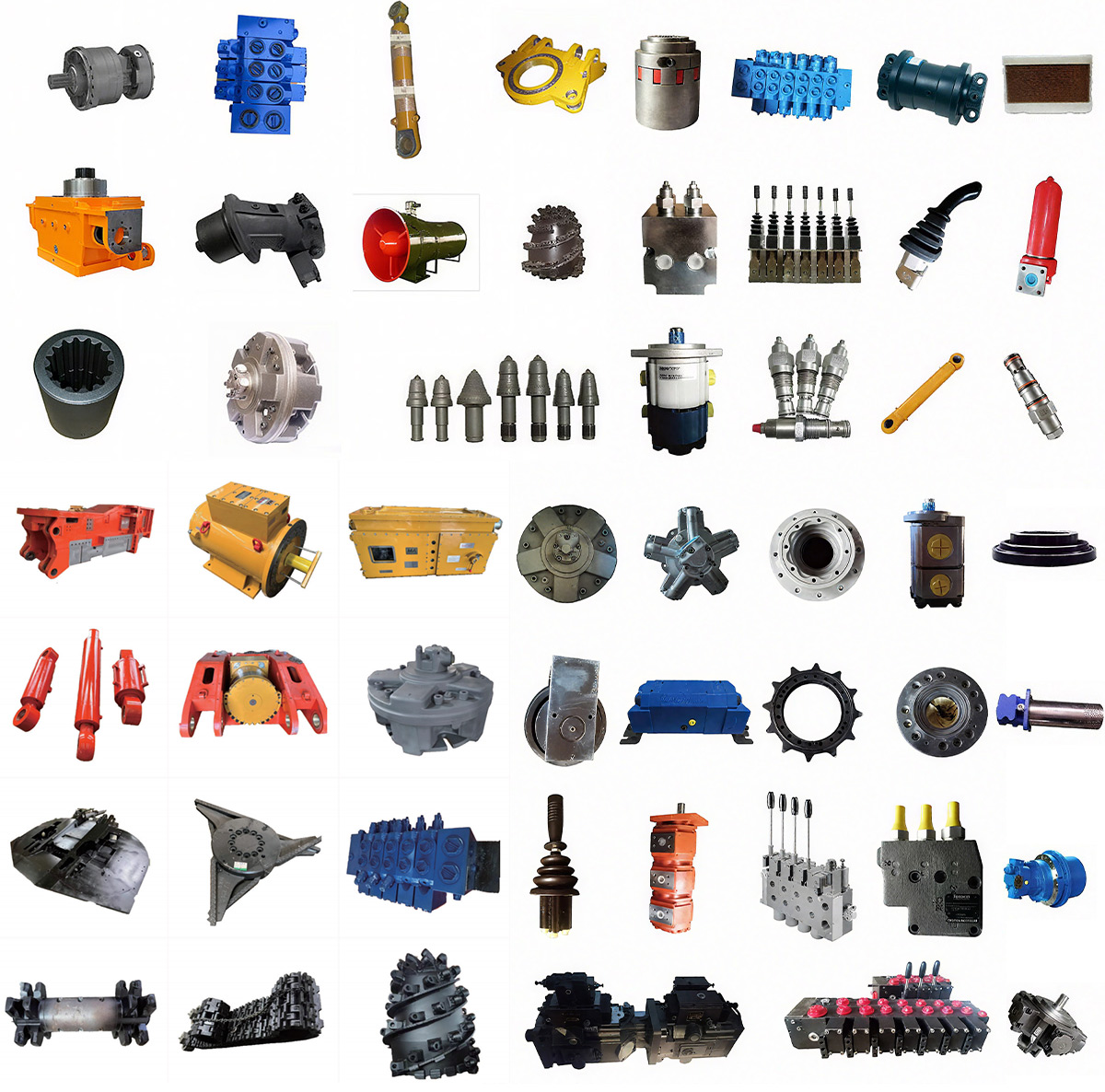

Spare parts for mining equipment
