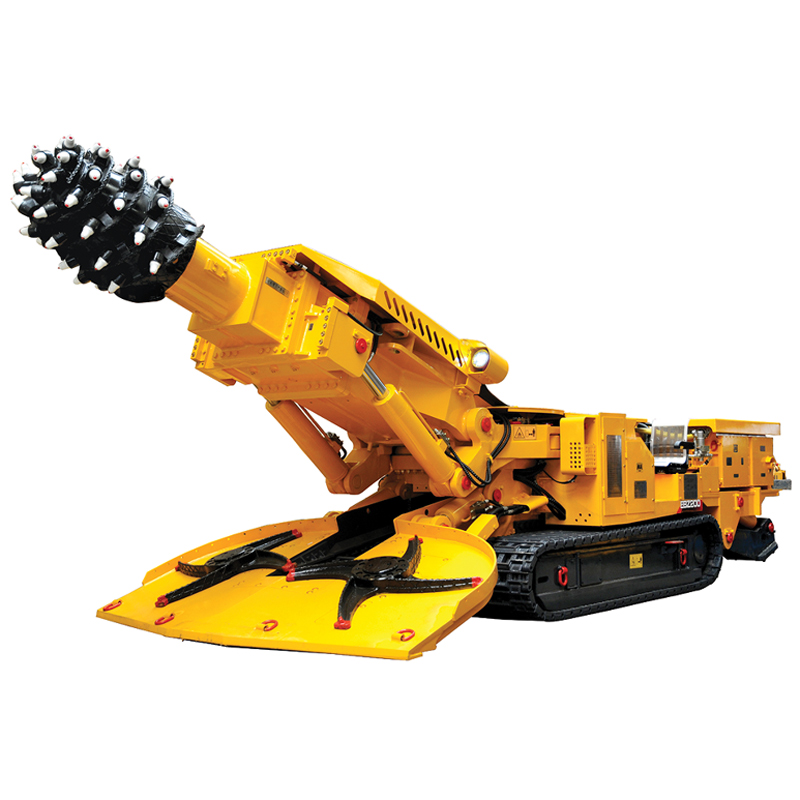

EBZ260 roadheader

The product demonstrates significant advantages in terms of equipment capacity, operating efficiency, adaptability to operating conditions, operational reliability, transportation, and maintenance. It ensures stable and efficient operation in challenging conditions, providing users with a reliable experience and improving efficiency and quality.

Contact Now WhatsApp

Product Details

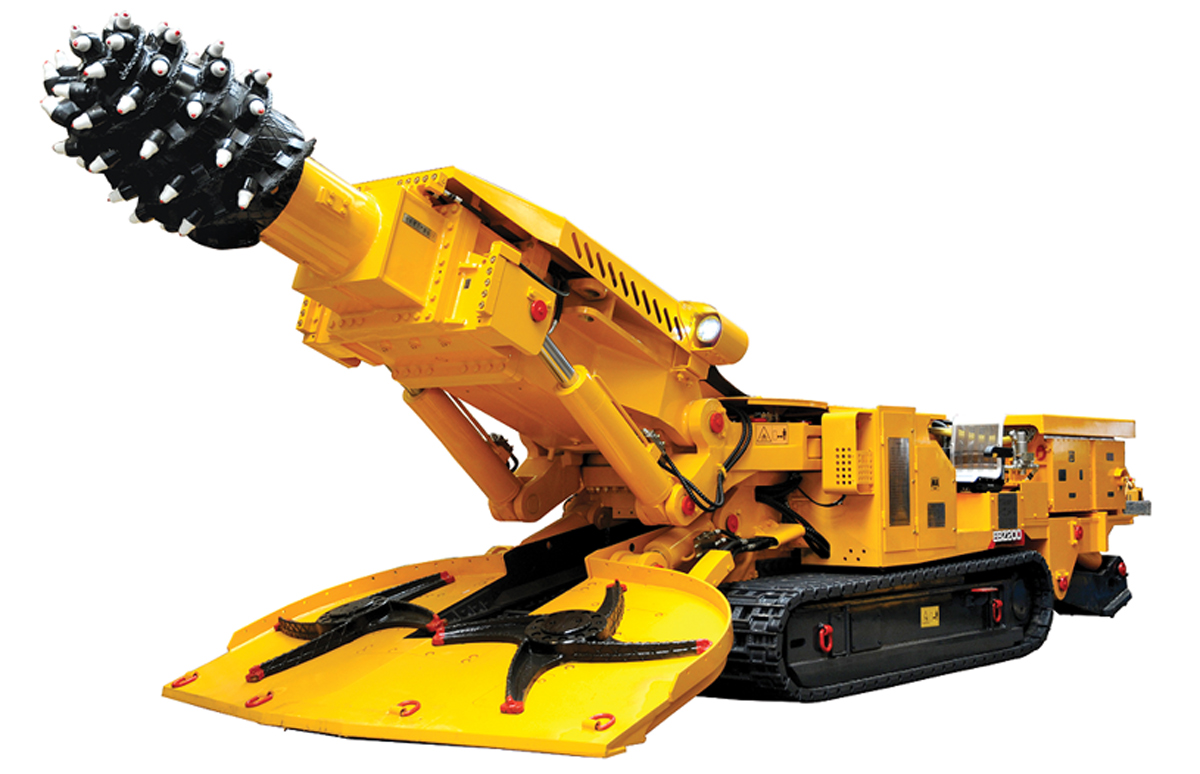

EBZ260 Roadheader

Specifications
Position				Parameter
Total weight				85 tons.
Overall dimensions	Length			11677mm
	Width	Feeder		3600/3200/3000/2800mm
		Housings		2700mm
	Height	Maximum height with horizontal cutting head		2650mm
	Frame			2000mm
	Undercut depth			275mm
	Ground clearance			260mm
	Fixed cutting size		height	5030mm
			width	5950mm
			square	30 m²
	Portal height mm			400mm
Climbing ability				± 18°
Rate of penetration				7m/min
Ground pressure				0.165MPa
Total power				410.5kW
Power of the cutting element electric motor				260/200kW
Power of the electric motor of the pumping station				132kW
Power supply voltage				AC1140V
Technical frequency				50Hz
Cutting head rotation speed				54/27 rpm
Load capacity				Star type 4.3m3/min
Track width				650 mm
External width of the track				2700mm
Tension type				Hydraulic cylinder tension and locking plate
Spray water pressure				External pressure≥4MPa
				Internal pressure≥2MPa
Size of the largest non-removable part				3.755x1.5x1.47м
Mass of the largest non-removable part				8700 kg.

Product Introduction

1. High performance:With a total power output of 410.5 kW, cutting motor power of 260/100 kW and cutting head speed of 54/27 rpm, it performs cutting operations efficiently. The star conveyor has a lifting capacity of 4.3 m³/min, making it easy to load and move material.

2. Adapts to difficult operating conditions:the ability to climb slopes reaches ±18°, allowing you to work in conditions with a slope; overall dimensions are telescopically adjustable - for example, positioning and cutting parameters differ in the extended and retracted states, which ensures adaptation to different spatial requirements; ground pressure is only 0.165 MPa, low surface impact, suitable for working on various types of lava.

3. Performance guarantee: water spray pressure:External spray pressure ≥4 MPa and internal spray pressure ≥2 MPa provide excellent dust suppression and a better working environment. The tensioning system utilizes two methods—hydraulic cylinder tensioning and clamp plate locking—to effectively maintain the tension of components such as tracks, thereby improving equipment stability.

4. Convenience of transportation and maintenance:The track width is 650 mm, the overall track width is 2700 mm, which ensures stable movement; the maximum dimensions of non-removable components are 3.755 × 1.5 × 1.47 m, and the weight is 8700 kg. During transportation and on-site maintenance, minimal requirements for vehicles and working space are required, which facilitates operation.

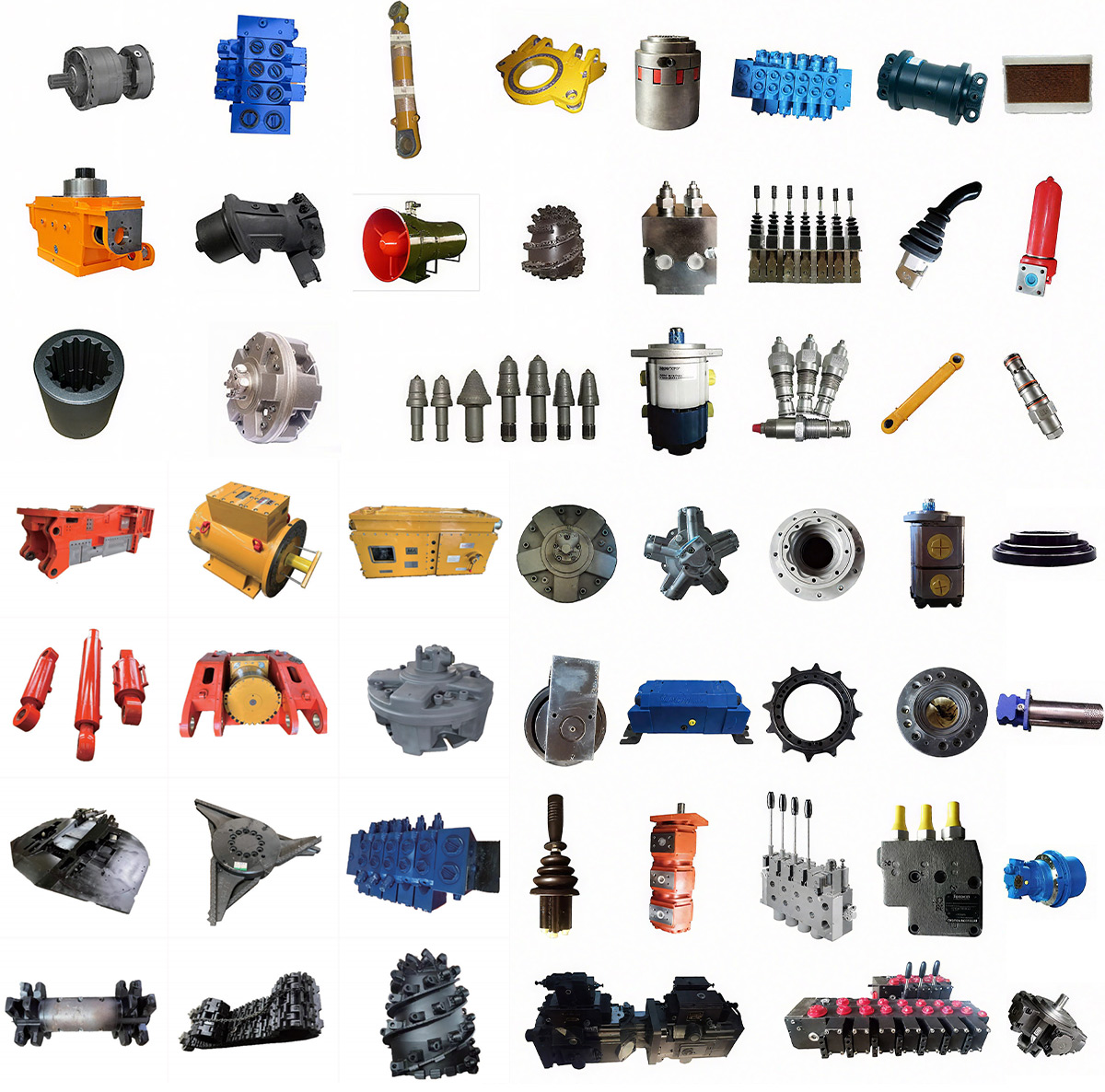

Spare parts for mining equipment
