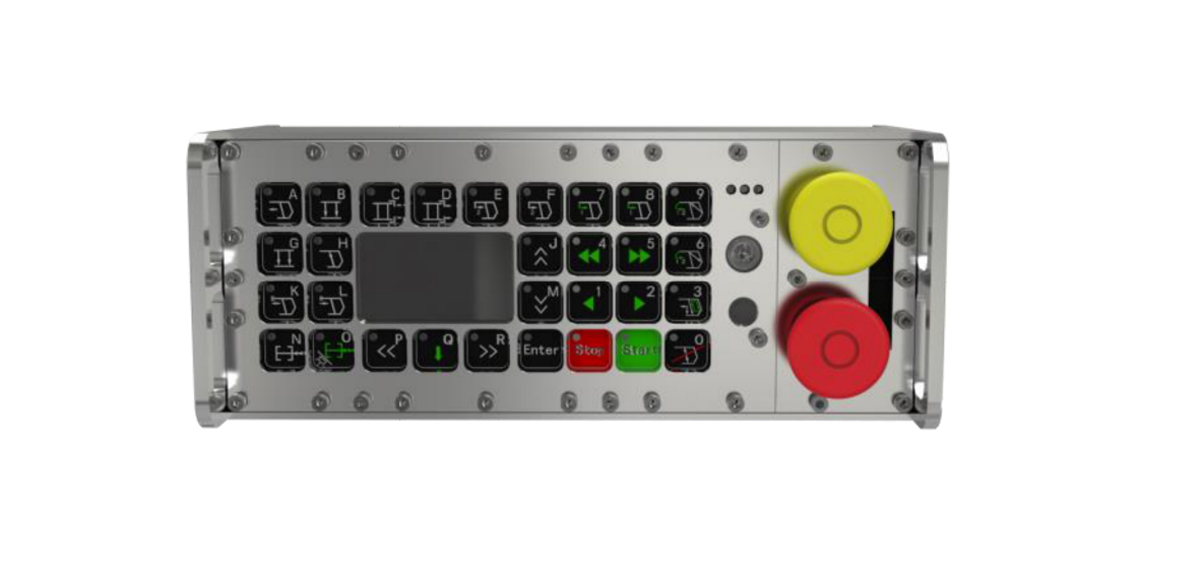

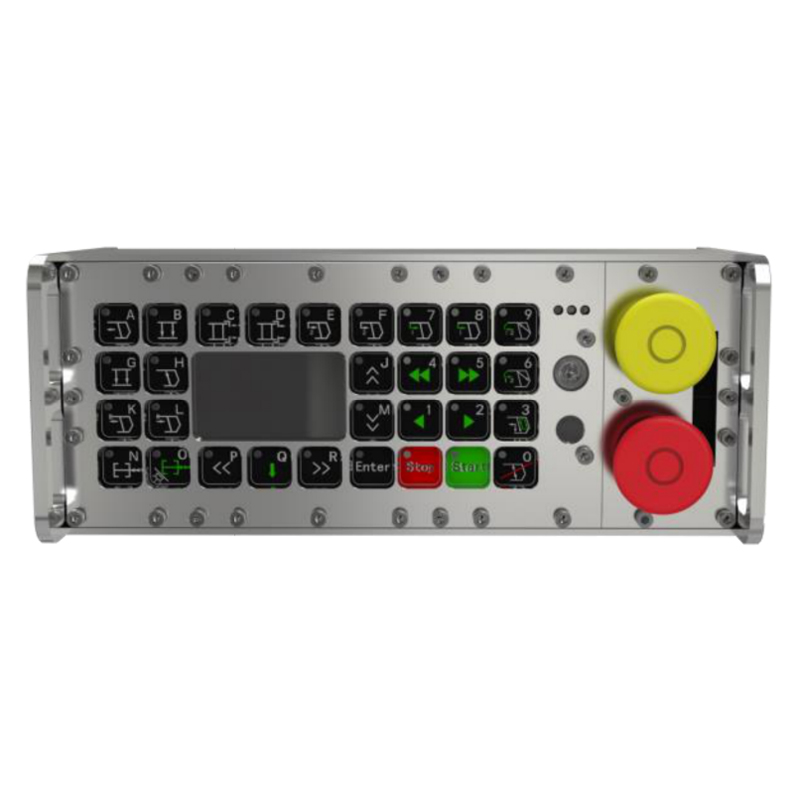

Support controller
Integrated (built-in) infrared sensor for detecting the position of the combine
Integrated (built-in) tilt sensor for determining the tilt angle of the roof section or - in combination with additional tilt sensors - for determining the height of the section
Collision prevention by locating miners using RFID face recognition technology (2D positioning with an accuracy of 30 cm)
Product Introduction
Each support section is equipped with a control device and a hydraulic unit. The control device is a local electronic control panel in automated longwall complexes. The device body is offered in two versions - either from particularly durable synthetic materials, which are particularly lightweight, or from high-quality stainless steel for particularly difficult operating conditions.
The Denak control device is easy to maintain and provides support for a customizable interface. The control device provides full and partial automation of combine and plow longwall complexes; it reads and processes sensor readings, in particular, the pressure level in the cylinders, the stroke of the conveyor cylinder, the position of the conveyor and the inclination. The entire control system is equipped with an emergency switch at the hardware level.
Communication (data exchange) of new pm32 roofing section control devices
generation is based on the standard Ethernet protocol and is carried out via 4-
wire cable connection to the adjacent section with a data transfer rate of 100
Mbps. This allows:
➢ Use video equipment in the lava
➢ Transmit voice messages over the network (Voice over IP)
➢ Implement comprehensive programs, including:
• To maintain the slaughter line,
• To predict rock bursts based on convergence analysis,
• To predict sudden outbursts of coal or gas using seismoacoustic analysis,
• To recognize the coal/rock boundary based on the analysis of signals from structure-borne noise (vibration) sensors
Company advantages
Denak offers system solutions, designs and components for entire complexes, systems or individual products, tailored to a wide variety of specific operating requirements of customers in the country of use, underground conditions of a particular mine, etc. Denak longwall control systems are used in combine and plow mining, including in the mining with the release of coal from the top stack.
Service is provided by representative offices in Australia, China, Russia, Germany, Mnogoletnaya, Mexico, Poland, Ukraine and the USA.
The Denak product line combines a minimalist, compact design with maximum flexibility. This technology can solve a range of complex applications for use in a variety of environments with varying geophysical and technical factors. Denak offers convenient and friendly user interfaces, as well as a modular system developed by it. Denak products are certified to comply with the most important international standards in Russia, China, Australia. Denak takes full responsibility for the operation of electronic, hydraulic and application software components. After-sales service is provided by representative companies around the world. Denak's many years of experience, innovative thinking and willingness to invest in future-oriented technology contribute to the efficiency and safety of the mining industry and support the company's image in the global market.
