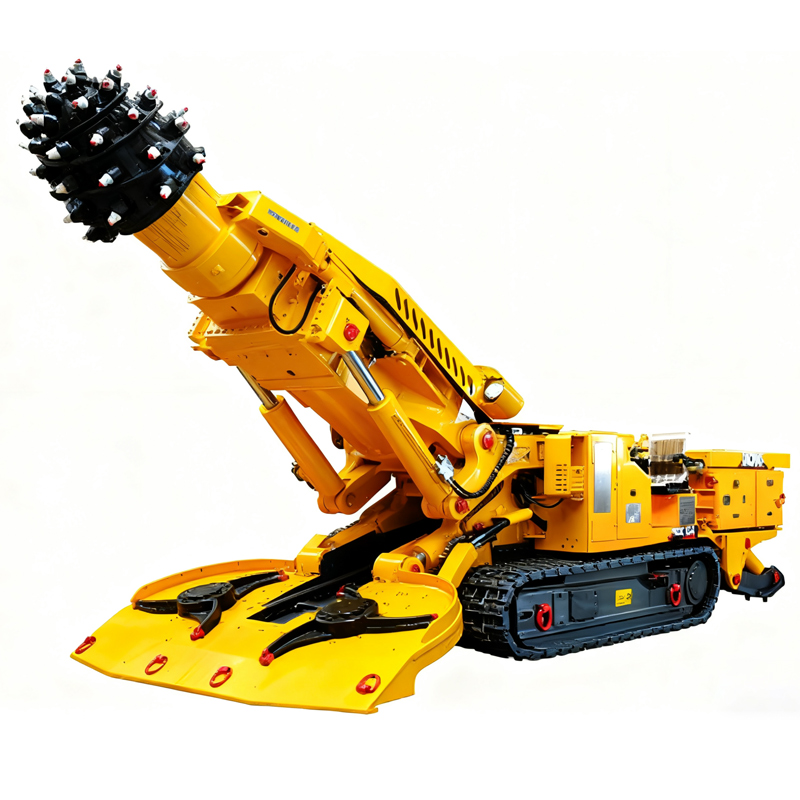

Roadheader EBZ160
The product provides outstanding operational performance, offering a wide range of efficient functions including cutting and loading. Its robust power configuration ensures high operating efficiency, complemented by effective atomization dust suppression capabilities. In terms of technical performance and adaptability, its balanced dimensions, weight and ground pressure allow it to be used universally in a variety of working conditions, making it easy to transport and install. Thanks to its comprehensive benefits, it is ideal for scenarios that require high operational efficiency, environmental compatibility and equipment adaptability.

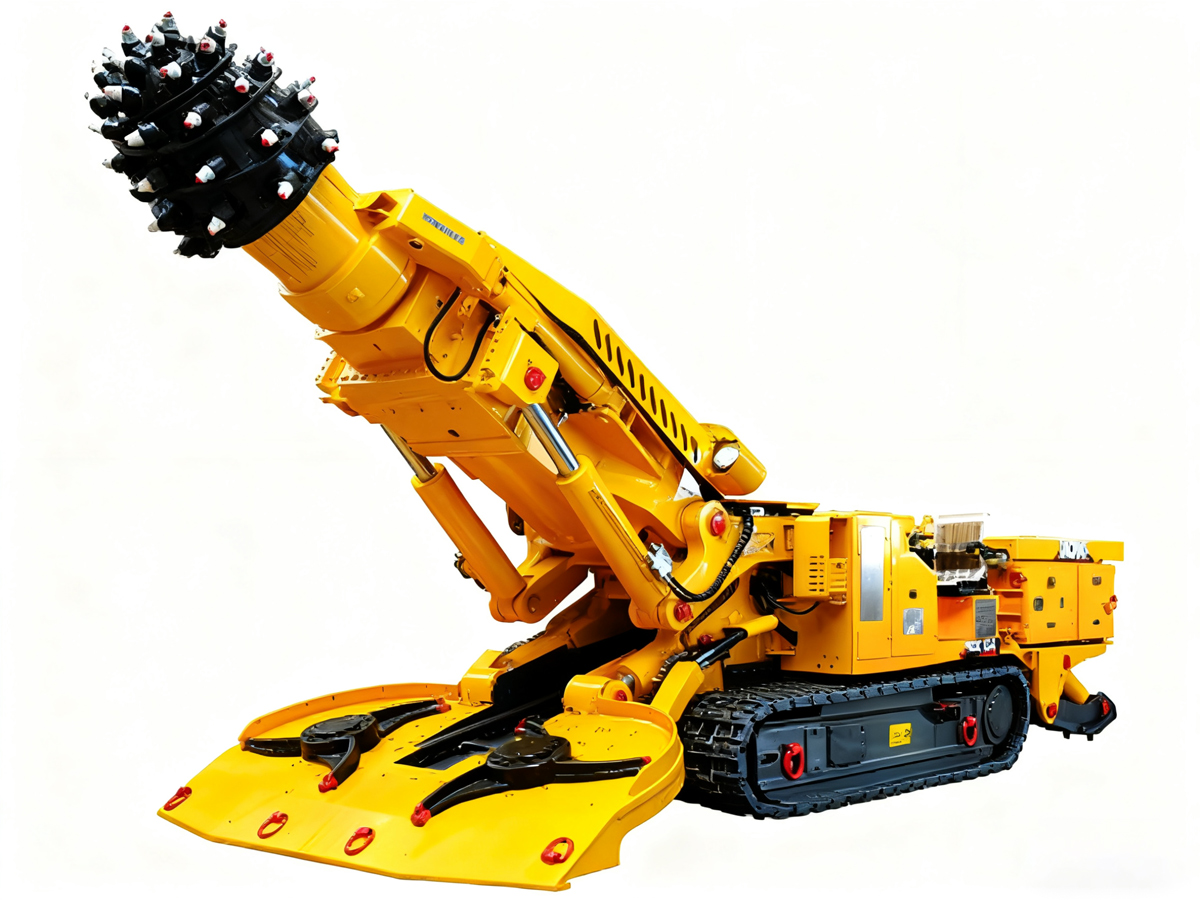

EBZ160 roadheader
Specifications |
||||
Position |
Parameter |
|||
Total weight |
47t. |
|||
Overall dimensions |
Length |
9340mm |
||
Width |
Feeder |
2900mm/2500mm |
||
Housings |
2330mm |
|||
Height |
Maximum height with horizontal cutting head |
2071mm |
||
Frame |
1650mm |
|||
Undercut depth (retractable/non-retractable) |
216/180mm |
|||
Ground clearance |
250mm |
|||
Fixed cutting size |
height |
4800/4500mm |
||
width |
5400/5000mm |
|||
square |
26/25m2 |
|||
Portal height mm |
400mm |
|||
Climbing ability |
± 18° |
|||
Rate of penetration |
6.5 m/min |
|||
Ground pressure |
0.148MPa |
|||
Total power |
265kW |
|||
Power of the cutting element electric motor |
160/80kW |
|||
Power of the electric motor of the pumping station |
90kw |
|||
Power supply voltage |
AC1140/660V |
|||
Technical frequency |
50Hz |
|||
Cutting head rotation speed |
48/24 rpm |
|||
Load capacity |
Star type 4.32m3/ min |
|||
Track width |
520mm |
|||
External width of the track |
2330mm |
|||
Tension type |
Hydraulic cylinder tension and locking plate |
|||
Spray water pressure |
External pressure≥4MPa |
|||
Internal pressure≥2MPa |
||||
Size of the largest non-removable part |
3.38x1.20x1.52m |
|||
Mass of the largest non-removable part |
5500 kg. |
|||
Performance: Wide cutting positioning range
Height (telescopic/non-telescopic) up to 4800/4500 mm
Width (telescopic/non-telescopic) 5400/5000 mm
Area (telescopic/non-telescopic) 26/25 m²
Adjustable cutting head speed (48/24 rpm)
Load capacity 4.32 m³/min
Climbing ability ±18°
Travel speed 6.5 m/min
Adaptability to various operating scenarios and terrain.
Power and efficiency
Total output power 265 kW
Cutting motor power 160/80 kW
The pumping station engine power is 90 kW
Providing reliable power for efficient equipment operation
The spray water pressure is ≥4MPa for external spraying and ≥2MPa for internal spraying, which can effectively suppress dust and improve the working environment.
Technical characteristics and adaptability
The machine has proportional dimensions and a total weight of 55 tons.
The track width is 520 mm and the outside track width is 2330 mm.
Working with a ground pressure of 0.148 MPa, it exerts minimal ground pressure, making it suitable for various terrain conditions.
The maximum dimensions of non-removable components are 3.38 × 1.20 × 1.52 m, which facilitates transportation and installation.

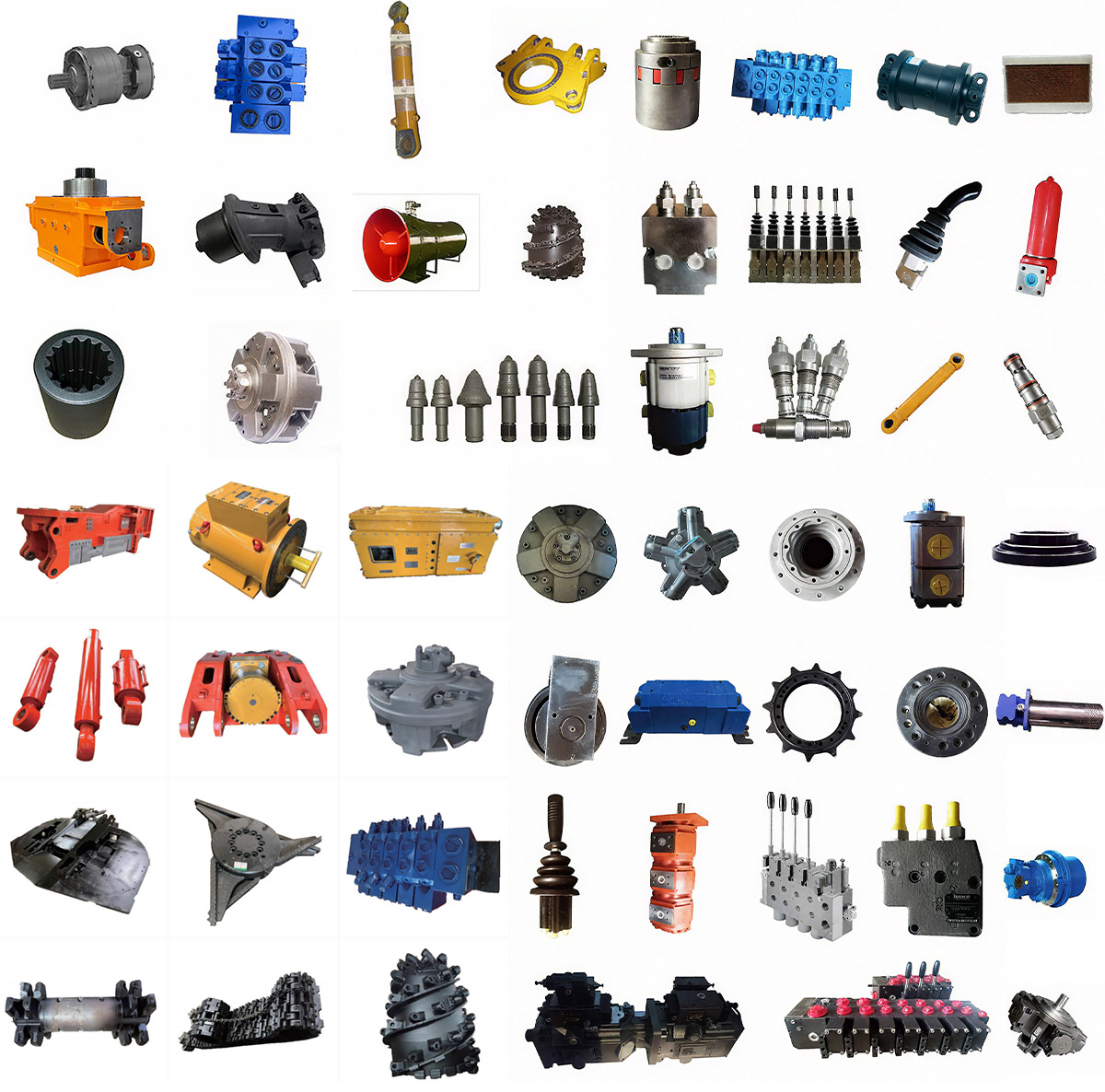

Spare parts for mining equipment
